50 Litres Vertical Autoclave Machine LCD Touch Screen Display Steam Sterilizer Autoclave

Name: 50 Litres Vertical Autoclave Machine LCD Touch Screen Display Steam Sterilizer Autoclave
Brand: Stertek
Price: 448 USD

Wholesale 50 Litres Vertical Autoclave Machine LCD Touch Screen Display Steam Sterilizer Autoclave from china suppliers

Brand Name : Stertek

Model Number : STV-HV50

Certification : CE, ISO13485,ISO9001

Place of Origin : China

MOQ : 1

Price : 448USD-3000USD

Payment Terms : L/C,T/T,Western Union,MoneyGram

Supply Ability : 1000pcs/month

Delivery Time : 15 working days

Packaging Details : Standard Export Wooden Case

Volume : 50 Liters

Door Structure : Handwheel door

Number of Baskets : 2 pcs sterilizing baskets

Control : LCD Touch Screen display

Data Recording : Printer

Drying Function : Vacuum Drying

Chamber Size : ∅340*550mm

Net Weight : 100kg

Working Temp. : 138℃

Working Press. : 0.25Mpa

Contact Now

Steam Circulation Auto Shutoff Vertical Autoclave 50 litres

The autoclave vertical 50 litres are assembled with heating system, micro - computer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are suitable for sterilizing equipment, dressings, containers, liquids, culture medium, waste, etc. in hospitals, disease control centers, P2 biological laboratories and blood stations, etc. of scientific research institutes.

Main Parameter:

Technical DataMODEL	STV-HV50
Chamber volume	50Lφ340×550mm
Design pressure	0.3MPa
Design temperature	150℃
Max. working pressure	0.25MPa
Max. working temperature	138℃
Heat average	≤±1℃
Timer range	0 - 99min
Power	(3.2 + 1.6)KW/AC220V.50Hz
Overall dimension(mm)	660×460×1160
Transport dimension(mm)	740×550×1270

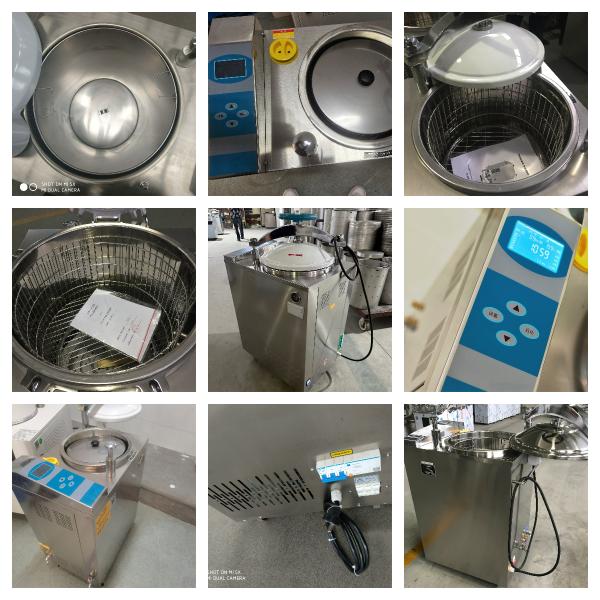

Detailed picture of Pulse Vacuum Steam Sterilizer

50 Litres Vertical Autoclave Machine LCD Touch Screen Display Steam Sterilizer Autoclave

Features of Vacuum Pressure Autoclave

Full Stainless Steel Construction
Durable, corrosion-resistant chamber and body ensure long-term use and hygiene compliance.
Quick-Open Door with Hand Wheel Design
Manual hand wheel structure for fast, safe, and reliable chamber access.
Advanced Door Safety Lock System
Prevents accidental opening under pressure for maximum operator safety.
Fully Automatic Computer Control
Intelligent operation covering water filling, heating, sterilization, steam exhaust, and drying—all in one cycle.
Digital Display with Touch Control Panel
Real-time process visibility and easy operation via modern touch-key interface.
Built-in Over-Temperature and Over-Pressure Protection
Automatic system safeguards to ensure safe and stable sterilization performance.
Steam-Water Internal Circulation System
No external steam discharge—keeping the work environment clean, dry, and eco-friendly.
Automatic Water Shortage Protection
Alerts and halts the process in case of insufficient water level, protecting the equipment and load.
Self-Inflating Silicone Seal
Ensures airtight sealing during the sterilization cycle without manual adjustment.
Automatic Shut-off with Audible Reminder
Machine powers off and emits a buzzer sound once sterilization is complete.
Equipped with Two Stainless Steel Sterilization Baskets
Allows flexible and efficient loading of medical or laboratory instruments.
Integrated Drying Function
Thorough post-sterilization drying for improved effectiveness and usability.

Application:
Laboratory/Scientific Research: glassware, culture medium, surgical instrument kits (must be matched with instrument baskets), biological waste (must be handled in compliance with regulations).
Hospital/Clinic/Medical Health: surgical instrument kits, dressing kits, fabrics.
Pharmaceutical/Bioengineering/Food Industry: production containers, tools, some raw materials/packaging materials (compatibility needs to be confirmed).

Our Factory

50 Litres Vertical Autoclave Machine LCD Touch Screen Display Steam Sterilizer Autoclave

Why Choose Us?

Direct Manufacturer Pricing: As the source factory, we eliminate middleman costs, providing global clients cost-effective sterilization solutions directly.
Efficient Direct Support: Our service team ensures rapid and efficient communication and support, handled entirely in-house from production to after-sales.
Flexible Custom Solutions: Leveraging strong technical expertise, we offer both standard models and fully customized equipment tailored to specific structural, functional, or control requirements.
Certified Quality & Safety: Every device undergoes strict quality control and holds international certifications (including CE, ISO 13485, ISO 9001), guaranteeing safety, stability, and long-term reliability.

FAQ

Q: What are your payment terms?
A: T/T (30% deposit, 70% before shipment); Irrevocable L/C at sight.
Q: What is the delivery time?
A: About 15 working days for one unit.
Q: What certifications does the sterilizer have?
A: CE, ISO 13485, ISO 9001.
Q: What warranty and after-sales support do you offer? Is global support available?
A: 12-month warranty from installation. We offer:
① Remote technical support via phone, email, and video.
② Operation & maintenance training (manuals, online/on-site).
③ Ample spare parts stock.
24/7 technical response guaranteed.
Q: How do you ship the products?
A: Ship by Sea or Air
① If you have your forwarder, you can arrange the shipment yourself. We will deliver the goods to the FOB port and cover all local charges before departure.
② If you don’t have a forwarder, we can arrange shipping to your designated port under CFR/CIF terms. Freight cost is borne by the customer.
Q: What trade terms do you support?
A: EXW, FOB, CFR, CIF, and DDP.
Q: Are you a factory or a trading company?
A: We are a manufacturer with our factory, and we also do trading and sourcing. Most products are made by us, while some are from partners or sister companies to complete equipment sets.
Our Vertical Vacuum Steam Sterilizer (Class B Autoclave) leads a comprehensive portfolio of medical-grade sterilization equipment, featuring:
- Vertical Gravity Autoclaves for CSSD
- Vertical Circulation Steam Sterilizers with Drying Function
- Compact Class N Sterilizers for Dental Clinics
- Tabletop Vacuum Autoclaves for Medical Offices
- Large Capacity Hospital Steam Sterilizers
- Pre-Vacuum Sterilizers for Surgical Instrument Processing
- Portable Autoclaves for Mobile Medical Units
